Best Oil Filter for 5.3 Vortec / Chevy Silverado: 8 Picks Ranked by Published Specs

The ACDelco PF63F is the oil filter to buy for a 2014 or newer Chevy Silverado or GMC Sierra with the 5.3L EcoTec3, because it is the true GM Original Equipment part with a published bypass rating. Older 5.3L Vortec 5300 trucks from 2007 to 2013 take a shorter, narrower filter entirely, and most listings do not say which one you are looking at.

I set out to rank oil filters for the 5.3 Vortec and ran into the same problem twice before I picked a single filter: "5.3 Vortec" is not one engine. It is two, built nine years apart, sharing a displacement and nothing else that matters to a filter.

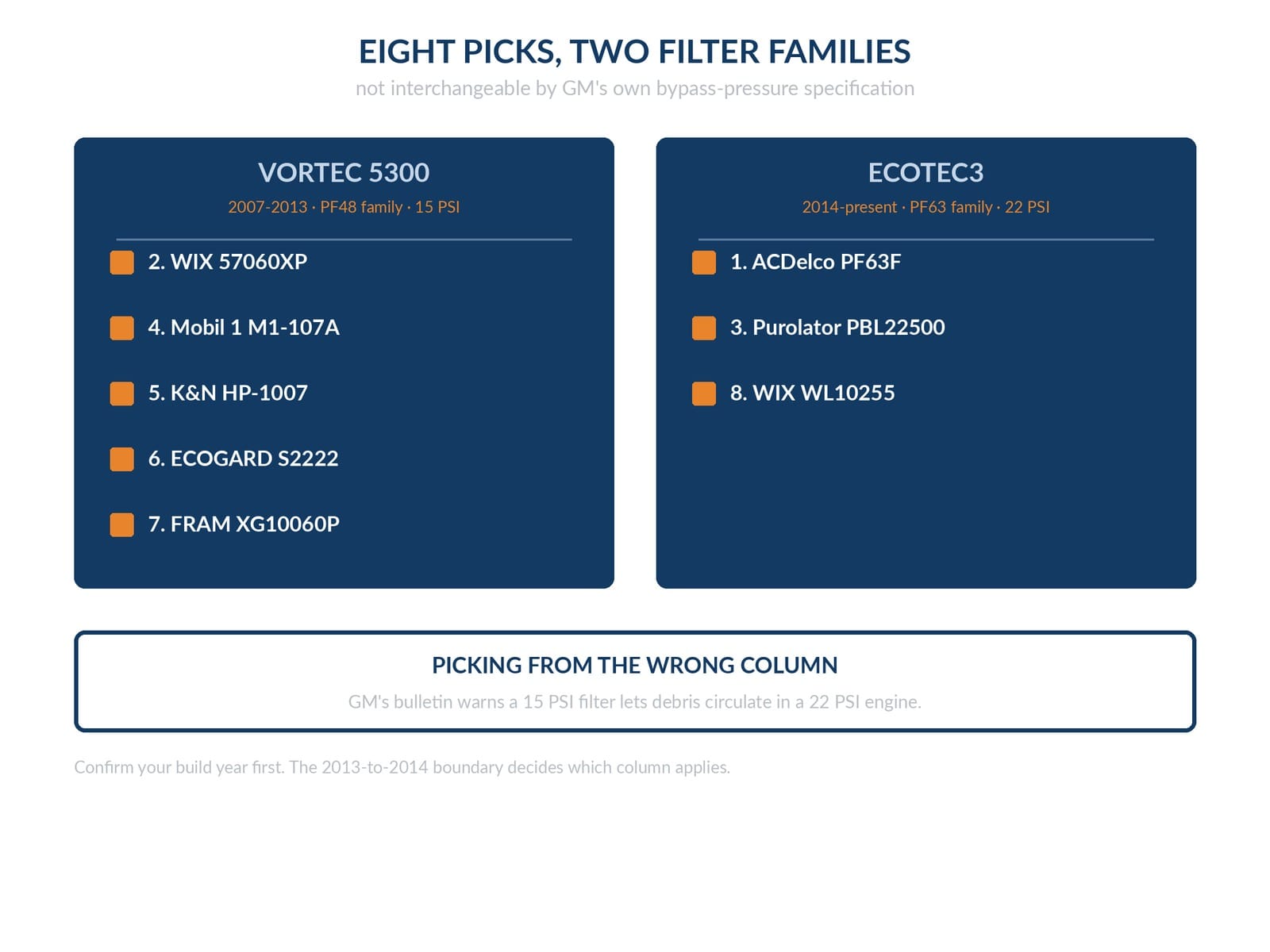

Picks 1, 3 and 8 fit the 2014 and newer EcoTec3. Picks 2, 4, 5, 6 and 7 fit the 2007 to 2013 Vortec 5300. Read the next section before you order anything, because it decides which half of this list applies to your truck.

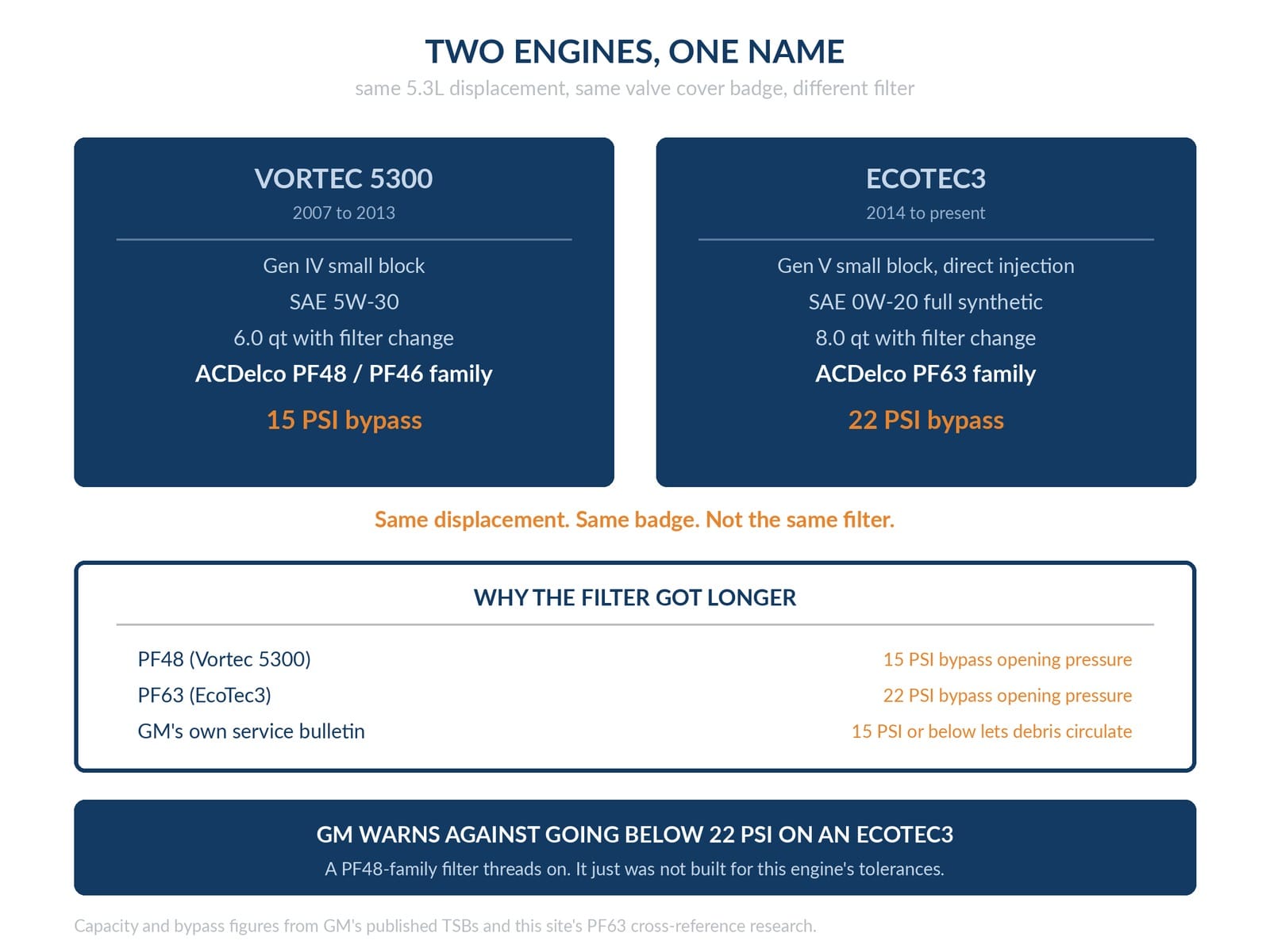

Two Engines Named 5.3 Vortec, Nine Years Apart

GM has sold a 5.3L V8 in the Silverado since 1999, and the name on the valve cover barely changed while the engine underneath it did. The filter that fits one generation is not the filter that fits the other.

The 2007 to 2013 trucks run the Vortec 5300, part of GM's Gen IV small block family. It specifies SAE 5W-30 and takes 6.0 quarts with a filter change. Its factory filter is the shorter ACDelco PF48 and PF46 family.

The 2014 and newer trucks run the EcoTec3, a Gen V small block with direct injection and cylinder deactivation. It specifies SAE 0W-20 full synthetic and takes 8.0 quarts with a filter change, after GM corrected an earlier published figure of 8.5 quarts with technical service bulletin PIP5231A following reports of overfilled engines. Its factory filter is the longer ACDelco PF63, confirmed on GM's own PF63 cross-reference bulletin coverage of the 5.3L and 6.2L V8 in the Silverado 1500, Suburban and Tahoe from 2014 to 2024.

Why one filter got longer

The PF63 replaced the PF48 for a reason GM states directly, not as a size upgrade for its own sake. GM's 2023 service bulletin warns that a replacement filter with a bypass opening pressure at or below 15 PSI lets debris circulate through the engine, risking bearing damage. The PF48 opens at 15 PSI. The PF63 opens at 22 PSI, seven PSI higher, on a can built for the tighter tolerances of the direct-injection EcoTec3.

That is the entire argument for getting the generation right before shopping on part number alone. A PF48-family filter will thread onto an EcoTec3, because the thread did not change. It just will not protect it the way GM's own engineering says it should.

Why Oil Capacity and Filter Length Are Not the Same Conversation

Two quarts of extra capacity between generations sounds like it should mean a bigger filter, and it does not, at least not by much. The capacity jump comes mostly from a redesigned pan and a wider filtration path through the EcoTec3's cylinder deactivation oil galleries, not from the PF63 holding dramatically more media than the PF48 it replaced.

What did change is the bypass setting, and that is the number every pick in this article gets checked against. A filter with the wrong capacity wastes a little oil on the dipstick reading. A filter with the wrong bypass pressure lets unfiltered oil past the media under conditions the engine was never tested for.

1. ACDelco PF63F: Best Overall

The ACDelco PF63F is the true GM Original Equipment filter for the 2014 and newer 5.3L EcoTec3, and it is the only pick here with a bypass valve setting that matches the engine it was designed around.

ACDelco publishes 98 percent multi-pass filtering efficiency at 25 to 30 microns on cellulose media, with a poppet-style bypass valve set to open at 22 PSI. That bypass figure matches this site's PF63 cross-reference research, where it is the specification GM warns owners not to substitute below.

The PF63F suffix is not a different filter. It is ACDelco's bulk dealer-pack designation for the same PF63 canister, sold without the individual box that retail listings usually photograph.

The catch: country of origin on the current listing is China, a change from the American-made reputation ACDelco built its OE line on, and reviewers report an inconsistent gasket that has failed on at least one verified purchase.

Skip it if: your truck is a 2013 or older Vortec 5300, where this filter is the wrong generation and the wrong bypass setting entirely.

Check on Amazon

2. WIX 57060XP: Best for Extended Drain Intervals

The WIX 57060XP is the pick for the 2007 to 2013 Vortec 5300 if you are running synthetic oil past the standard change interval.

WIX rates the 57060XP at 99 percent efficient at 23 microns, based on the WIX 51515XP, on next-generation synthetic-blended media with natural fibers, rated to 20,000-mile change intervals. Its cross-reference sits squarely in the older Vortec 5300's PF48 family, not the PF63 group the newer trucks need.

WIX's own catalogue gives the standard, non-XP 57060 a 12 PSI bypass, a 350 PSI burst rating and a 3.335-inch height, the correct dimensions for the shorter older-generation can. The XP version drops most of that data sheet in exchange for the upgraded media.

The catch: the efficiency figure on the retail listing is attributed to a different WIX part number entirely, the 51515XP, not the 57060XP being sold. WIX's XP catalogue pages consistently drop the burst pressure and beta ratio the standard-media version publishes.

Skip it if: your truck is a 2014 or newer EcoTec3, where this filter's 12 PSI bypass is seven PSI below the 22 PSI GM specifies.

Check on Amazon

3. Purolator BOSS PBL22500: Best for Towing and Hauling

The Purolator BOSS PBL22500 is built around a reinforced center tube for the 2014 to 2021 Silverado 1500, and it is the pick if towing or hauling is what you use the truck for.

Purolator specifies SmartFUSION full synthetic media rated over 99 percent dirt removal power, tested per ISO 4548-12 at 25 microns on a related part number, plus a Double-Helix metal center tube built for higher strength against oil flow pressure. The listing states Chevrolet Silverado 1500 fitment for 2014 through 2021, the correct EcoTec3 generation, and a verified customer review notes the filter is manufactured by Mann+Hummel in Fayetteville, North Carolina.

Purolator's own comparison chart on the listing puts this line's recommended oil change interval at 15,000 miles, positioned between its 10,000-mile Purolator line and its 20,000-mile PurolatorONE line.

The catch: a verified purchaser reports Purolator revised this filter's published rating from a 20-micron figure to a 46-micron figure without renaming the part, meaning a filter bought years apart under the same PBL22500 number may not be the same filter.

Skip it if: your truck is a 2007 to 2013 Vortec 5300, since this listing's confirmed fitment starts at the 2014 model year.

Check on Amazon

4. Mobil 1 M1-107A: Best OEM Cross for the Older Vortec 5300

The Mobil 1 M1-107A is the direct manufacturer cross for the pre-2014 Vortec 5300, confirmed by K&N's own published interchange list rather than a third-party aggregator.

Mobil publishes up to 99 percent filtration efficiency at 30 microns on synthetic blend media, rated for up to 25,000 miles or one year. A verified Amazon review from an owner of a 2006 GMC Sierra 1500 with the "5.3 Vortec" confirms this exact part number as the one they have bought repeatedly for that truck.

K&N's own product page for the HP-1007 lists Mobil One "M1107A" directly in its cross-reference table, alongside WIX 51042, ACDelco PF44 and Purolator L14006. All four are the same filter position, confirming this generation's shared aftermarket family independent of any single brand's marketing.

The catch: 30 microns is the loosest efficiency threshold published by any pick in this article, ten microns coarser than the FRAM pick below and seven microns coarser than the WIX XP pick.

Skip it if: you want the tightest published micron threshold, since Mobil's own 30-micron figure is the widest number in this list.

Check on Amazon

5. K&N HP-1007: Best for DIY Removal

The K&N HP-1007 is the pick if you change your own oil and are tired of fighting a cap wrench, because it is the only filter in this list built with a socket-ready nut welded to the base.

K&N specifies pleated synthetic-blend filtration media, a heavy-duty canister, and a smallest-particle-filtered rating of 10 microns with an 11 to 17 PSI relief valve opening range and a 550 PSI maximum burst pressure. Its own cross-reference confirms this is the same filter position as the Mobil 1 M1-107A, WIX 51042, ACDelco PF44 and Purolator L14006, all older Vortec 5300 fitments.

The one-inch welded hex nut is the actual reason to pick this filter over its cross-referenced equivalents. It removes with any 1-inch socket rather than a cap or strap wrench, which matters most on trucks where the filter sits in a tight bay.

The catch: K&N's own specification sheet lists "Bypass Valve: No" separately from the 11-17 PSI relief valve figure, an internal inconsistency in K&N's own published data that the listing does not explain.

Skip it if: you want the tightest published micron rating, since 10 microns "smallest particle filtered" is a different metric than the percentage-at-a-stated-size figures every other pick publishes, and the two are not directly comparable.

Check on Amazon

6. ECOGARD S2222: Best Budget Pick

The ECOGARD S2222 is the cheapest filter in this list with a stated micron figure, and its listing is the most explicit about which Silverado years it actually fits.

ECOGARD publishes 99 percent efficiency at 25 microns under ISO 4548-12 testing standard, on synthetic blend media rated to 10,000-mile change intervals, twice the filtration capacity ECOGARD claims over conventional media. The listing title states fitment directly: "Chevrolet Silverado 1500 5.3L 2007-2013," the exact older Vortec 5300 window this pick belongs to.

ECOGARD's own listing states this filter replaces the FRAM PH10060, TG10060 and WIX 57060XP, placing it in the same cross-reference family as pick 2 and pick 7 in this article, at roughly a third less cost per unit.

The catch: ECOGARD does not publish a bypass valve opening pressure anywhere on the listing or its spec sheet, the one figure GM's own bulletins say matters most for engine protection.

Skip it if: you want a published bypass pressure to check against GM's warning figures, since this is the one number ECOGARD leaves out.

Check on Amazon

7. FRAM Ultra Synthetic XG10060P: Best for Synthetic Oil Users

The FRAM Ultra Synthetic XG10060P pairs an efficiency percentage with a stated micron size, one of only three picks in this article to do both.

FRAM publishes 99%+ dirt removal efficiency at greater than 20 microns, on dual-layer synthetic media rated to 20,000 miles, with a silicone anti-drain-back valve. Twenty microns is the tightest published threshold of any pick in this article. ACDelco's own bulletin for the PF63 generation only claims 25 to 30 microns by comparison, though the two filters are not interchangeable across generations.

The listing sells this filter as the XG10060P, a packaging variant of the plain XG10060, the same naming pattern this site has documented on other FRAM Ultra Synthetic listings.

The catch: FRAM's 99%+ figure is tested on the XG8A, XG3387A and XG4967 product family under ISO 4548-12, not on this specific part number, the same family-result pattern this site has documented on FRAM's other Ultra Synthetic listings.

Skip it if: your truck is a 2014 or newer EcoTec3, where this filter's older-generation cross does not carry the 22 PSI bypass rating GM specifies.

Check on Amazon

8. WIX WL10255: Best for 2014+ High-Mileage Trucks

The WIX WL10255 is a genuinely different product from every other WIX pick in this article: a high-mileage-oil formulation for the newer EcoTec3 rather than a synthetic-media upgrade of the older filter.

WIX rates the WL10255 at 99 percent efficient at 26 microns, tested on the WIX 51515, on advanced blended media built for synthetic and high-mileage oil, rated to 15,000-mile intervals. WIX anchors the WL10255 to GM part number 19330000, the exact OE number GM's bulletin assigns to the PF63E, the correct EcoTec3-generation cross rather than the older PF48 family the other WIX pick in this article belongs to.

That distinction is why this filter earns a second WIX slot: it is not a media upgrade of pick 2, it is the current-generation counterpart built for a different truck entirely.

The catch: the efficiency figure is attributed to a different WIX part number, the 51515, the same family-result pattern documented on the 57060XP earlier in this article. WIX applies the practice across its catalogue rather than to any single filter.

Skip it if: your truck is a 2007 to 2013 Vortec 5300, where this filter's PF63-family cross does not match the older PF48 bypass specification.

Check on Amazon

How We Ranked These

Nothing here was physically tested. There is no lab, no teardown, no mileage trial, and no filter was cut open for this article.

The ranking is built from published manufacturer specifications, read from each maker's own product page or catalogue where one exists, and cross-checked against a second document wherever possible. The bypass pressure and generation-fitment figures come from GM's own published service bulletins and this site's existing PF63 cross-reference research, the efficiency claims from each brand's own product pages, and the part-number equivalences from manufacturer cross-reference tables such as K&N's own published interchange list, rather than from aggregator charts.

Candidates were found by searching Amazon the way an owner would, then filtered. Sponsored placements were discarded before any ranking. Listings from sellers with no identifiable manufacturer were dropped, including several "PF63" clones and a reseller relabeling generic filters under fabricated cross-reference numbers spanning unrelated engines.

Where a manufacturer publishes nothing, the specification tables say "Not published" rather than borrowing a number from a similar part. Four of the eight picks have no published bypass valve pressure at all, which is the single most consequential gap in this category given how directly GM's own bulletins tie that number to engine damage.

What Actually Matters When You Choose One

Confirm your model year before anything else. The 2013-to-2014 boundary is the entire decision. A 2013 Silverado 1500 and a 2014 Silverado 1500 share a nameplate and a displacement, and take differently rated filters.

The bypass valve pressure is the number that actually protects the engine, not the micron rating. GM's own service bulletin states plainly that a filter opening at 15 PSI or below lets debris circulate through an engine built for 22 PSI. Four of the eight picks in this article do not publish this figure at all.

A micron rating with no test standard attached is a marketing claim. ECOGARD and Purolator both cite ISO 4548-12, which lets you compare their numbers on the same basis. K&N's "10 microns smallest particle filtered" uses a different metric entirely and cannot be compared directly against the others.

Check whose part number the efficiency claim was actually measured on. Three of the eight picks in this article, the WIX 57060XP, the WIX WL10255 and the FRAM XG10060P, attribute their published efficiency figure to a different part number in the same product family rather than the exact filter being sold.

"5.3 Vortec" in a listing title does not guarantee the right generation. Several candidates found during research listed 5.3L Silverado fitment while actually crossing to a completely different engine's filter position. Read the stated model years, not just the displacement.

Oil capacity changed with the generation too. The older Vortec 5300 takes 6.0 quarts with a filter change. The newer EcoTec3 takes 8.0 quarts, after GM corrected its own published 8.5-quart figure. Buying the wrong amount of oil is a smaller mistake than buying the wrong filter, but it is the same underlying confusion.

Filters That Did Not Make the List

WIX 51042XP is the PF46-family cross for even older pre-2007 5.3L trucks, one generation further back than either engine this article covers. It surfaced repeatedly in candidate searches for "5.3 Vortec" despite belonging to a third, older filter position.

Royal Purple has no oil filter listing that anchors cleanly to a single part number the way its competitors do. Searches for "Royal Purple oil filter 5.3" return the brand's break-in oil and unrelated filter listings rather than one clear product to rank, the same reseller-listing pattern that has kept AMSOIL out of this site's other roundups.

Mobil 1 M1-212A surfaces in searches for GM trucks and does not fit either 5.3L generation. Its cross-reference sits with WIX 57502, 57045 and WL10255's Ford-consolidated family per this site's PF63 research, not the Silverado-specific 5.3L applications.

"Doc's Auto Parts" listings claim Chevy Silverado 1500 5.3L fitment while their own product page lists an OEM cross-reference spanning a Jeep Cherokee, a Mercedes C280, a BMW 328i and a Toyota Corolla under the same part number, a fabricated cross-reference rather than a real interchange group. No manufacturer website exists for this brand beyond the Amazon storefront.

Unbranded "PF63" clone listings were dropped as a group. None publishes a manufacturer website, a bypass pressure or a micron rating, and several copy WIX and FRAM part numbers directly into their own titles.

ACDelco PF2262G appeared in early candidate searches under a 5.3-related query, but its actual fitment is the 3.6L V6 Buick Enclave using a cap-and-seal cartridge style, not the spin-on PF63 position this article covers.

FAQ

What oil filter does a 5.3 Vortec take?

It depends entirely on the model year. A 2007 to 2013 Silverado or Sierra with the 5.3L Vortec 5300 takes the ACDelco PF48 or PF46 filter family. A 2014 or newer Silverado or Sierra with the 5.3L EcoTec3 takes the ACDelco PF63. The two are not interchangeable by GM's own published bypass pressure specification.

How many quarts of oil does a 5.3 Vortec take?

The 2007-2013 Vortec 5300 takes 6.0 quarts with a filter change. The 2014-and-newer EcoTec3 takes 8.0 quarts with a filter change, after GM corrected an earlier published 8.5-quart figure with technical service bulletin PIP5231A.

Can I use a PF48 filter on a 2014 or newer Silverado?

It will thread on, but GM's own service bulletin warns against it. The PF48's bypass valve opens at 15 PSI, seven PSI below the 22 PSI the EcoTec3's PF63 is designed around, which GM states allows debris to circulate and risks bearing damage.

What micron rating is the 5.3 Vortec oil filter?

ACDelco's PF63 publishes 98 percent efficiency at 25 to 30 microns. Among the aftermarket options for the older Vortec 5300, FRAM's XG10060P claims 99%+ at greater than 20 microns, ECOGARD's S2222 claims 99% at 25 microns under ISO 4548-12, and Mobil 1's M1-107A claims up to 99% at 30 microns, the loosest of the three.

Does the oil filter brand matter on a 5.3 Vortec?

What matters more than the brand is whether the filter matches the correct generation's bypass pressure. A well-known brand's filter built for the wrong generation is a worse choice than a budget filter built for the right one. This site's guide to whether the oil filter brand actually matters covers the broader question in more depth.

What to Do Next

Check your build date or VIN before ordering anything. GM's own PF63 documentation draws the line at the 2014 model year for the 5.3L V8, and this article's picks split cleanly on that same boundary: numbers 1, 3 and 8 for 2014 and newer, numbers 2, 4, 5, 6 and 7 for 2013 and older.

Then decide what you are buying. If it is the true GM Original Equipment part with a published bypass pressure, the ACDelco PF63F is the only pick in this list that gives you one for the newer trucks. If it is a published efficiency figure for the older Vortec 5300, the FRAM XG10060P publishes the tightest micron threshold of any older-generation pick here. This roundup joins the other engine-specific picks on the site's best oil filters hub.

This comparison walks through both generations side by side, including the bypass-pressure difference this article turns on.
